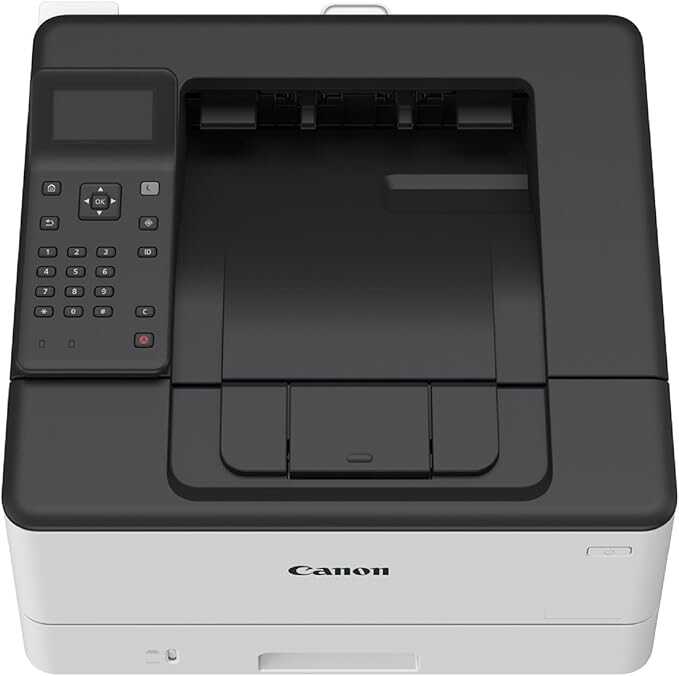

Canon i-SENSYS LBP243DW-5952C013AA Wifi Mono Laser Printer

Canon i-SENSYS LBP243DW-5952C013AA Wifi Mono Laser Printer

Detailed technical specifications

General Features

Machine Type Laser printer

Available Functions Printing

Printing Technical Specifications

Print Speed

Single-sided Up to 36 pages per minute (A4)

Up to 58.8 pages per minute (A5 - Landscape)

Double-sided Up to 30.2 images per minute (A4)

Printing Method Black and white laser printing

Print Resolution up to 1,200 x 1,200 dpi

Warm-up Time Approx. 14 seconds or less (after power on)

Output Time of First Print Approx. 5.0 seconds or less

Printer Languages UFRII, PCL 5e1, PCL6

Fonts 45 PCL fonts

Printing Margins Top, bottom, left and right 5 mm

Toner Saving Mode

Encrypted Secure Printing

Secure Printing

Microsoft Universal Print support

iOS: AirPrint, Canon PRINT Business app

Android: Mopria certified, Canon Print Service Plugin, Canon PRINT Business app

Advanced Print Features

iOS: AirPrint, Canon PRINT Business app

Android; Mopria certified, Canon Print Service plugin, Canon PRINT Business app

Media Use

Paper Input (Standard) 250-sheet cassette, 100-sheet multipurpose tray

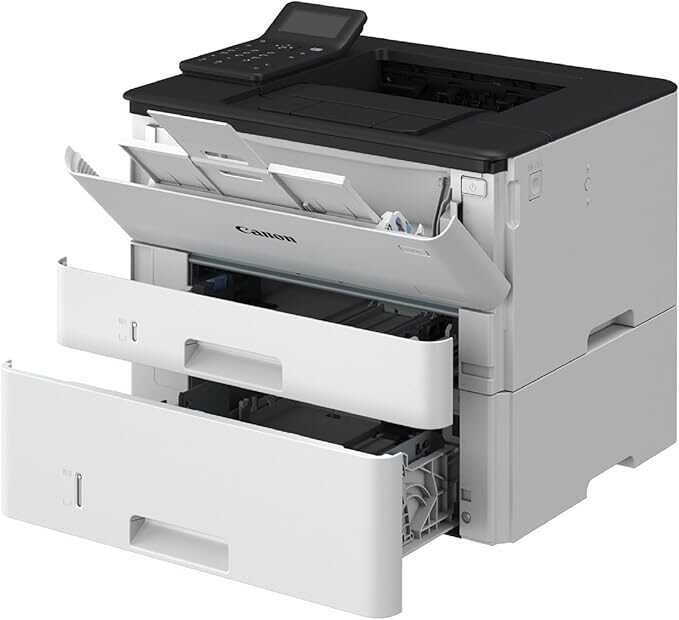

Paper Input (Optional) 550-sheet cassette

Maximum Paper Input Capacity Up to 900 sheets

Paper Output 150 sheets

Paper Types Plain paper, Recycled paper, Heavy paper, Thin paper, Coated paper, Label, Postcard, Envelope

Media Dimensions

Cassette (Standard and optional): A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Customized sizes: Min. 105 x 148 mm Max. 216.0 x 355.6 mm.

Multipurpose tray: A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Index card, Envelope (COM10, Monarch, C5, DL), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.

Media Weights Cassette (standard and optional): 60 - 120 g/m², Multipurpose tray: 60 - 199 g/m²

Double Sided Printing A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap, Customized sizes: Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm, 60 - 120 g/m2

Interface and Software

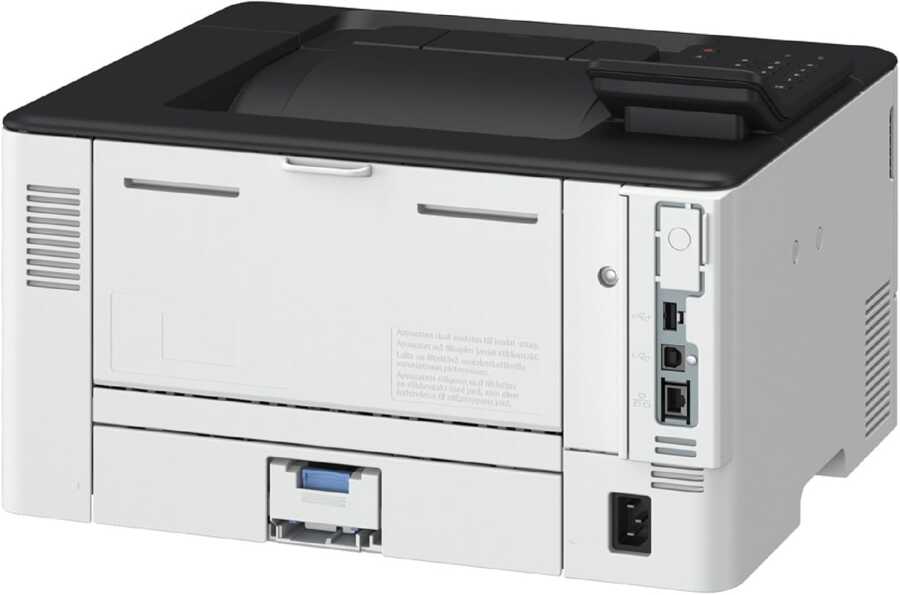

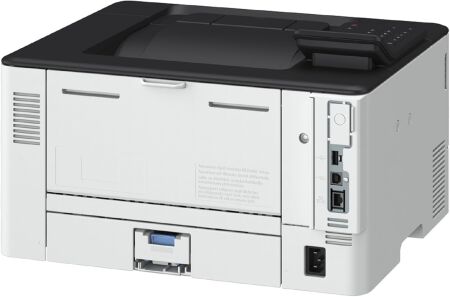

Interface Type USB 2.0 High Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connect

Operating System Compatibility Windows® 11 / Windows® 10 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012, Mac OS X Version 10.13 and above, Linux2

Network Protocol

Printing: TCP/IP (LPD/Port9100/IPP/IPPS/WSD)

Management: SNMPv1, SNMPv3 (IPv4,IPv6)

Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)

Security (wireless):

Infrastructure Mode: WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)

Access Point Mode: WPA2-PSK (AES)

Software and Printer Management

Remote User Interface (RUI),

Department Identity Management,

Toner Status Tool,

iW Corporate

General Features

Recommended Monthly Print Volume 750 - 4,000 pages per month

Maximum Throughput 80,000 pages

Processor Speed 1,200 MHz

Memory 1 GB

Storage 4 GB eMMC

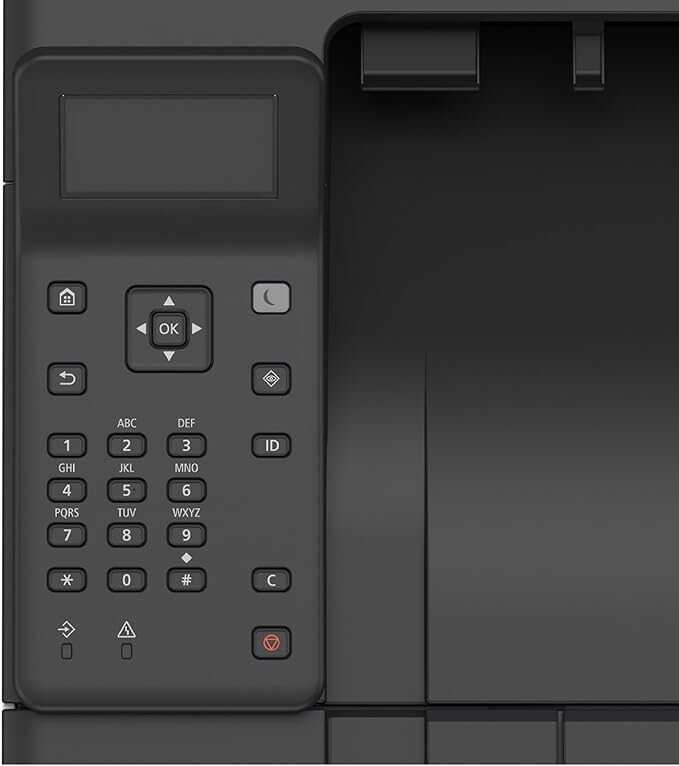

Control Panel 5 Line LCD, 3 LEDs (Work, Error and Energy saving), Buttons, 10-key numeric keypad

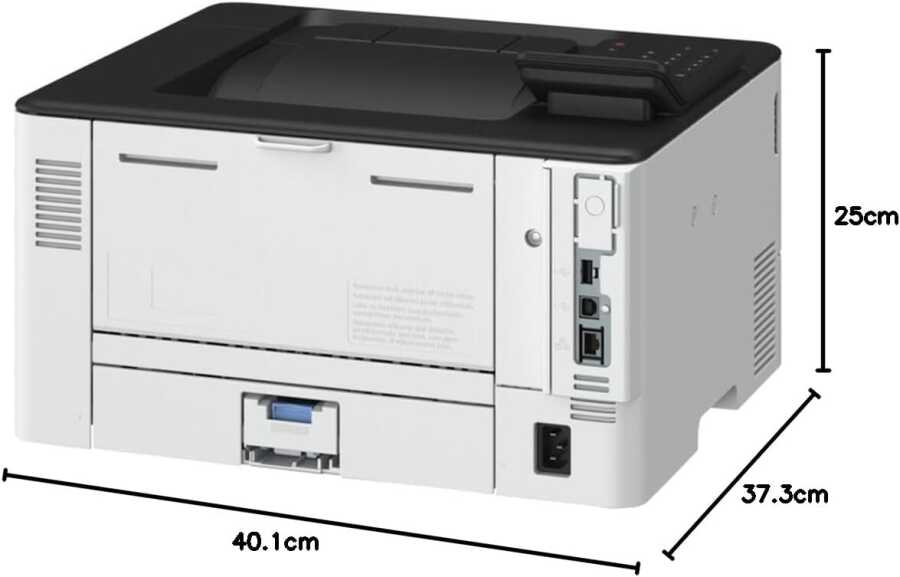

Dimensions with trays (W x D x H) 399 mm x 373 mm x 249 mm

Weight Approx. 9.5 kg

Working Environment

Temperature: 10 - 30 °C (50 - 86 °F)

Humidity 20% - 80% RH (non-condensing)

Power Supply 220-240 V (±10%) 50/60 Hz (±2 Hz)

Power Consumption

Maximum: Approx. 1,250 W

Active printing Approx. 480 W

Standby Approx. 6 W

Sleep mode Approx. 0.9 W

Typical Electricity Consumption (TEC): 0.29 kW/h per week (230 V)3

Noise Levels

Sound Pressure

Active: 54 dB or less unilaterally

Duplex: 53 dB or less

Pending Inaudible

Sound Power

Active: 68 dB

Pending Inaudible
